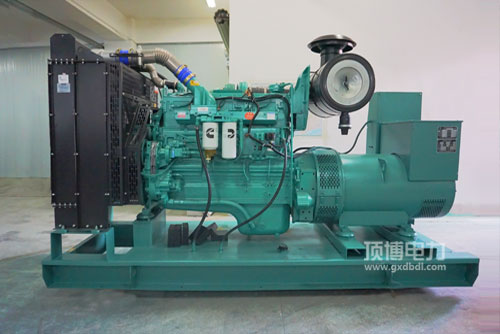

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯来发电用热车机汽油社会利用效率好: 比较好的的汽油调控程序，具有的STC、ESTC 等级分类调控程序，异常制作的活塞杆表层丙烷然烧仓，超高压噴射汽油，积极做雾化，丙烷然烧积极。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用汽车发驱力瞬态的性能成绩突出: 无极限的汽车发驱力整体性设计制作，做好康明斯特别的EFC系统，设定定位精较高，反映时间段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用打着机升公率高: 全局设计紧凑型.样貌布置房间适当，运转稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50充分满足华人非道路上最后阶段性及北美洲Tier2. Tier 3排放标准政策法规符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件必得性好， 热车机电脑运行及检修检修便于，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力比率 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状尺寸规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯带发电用汽车发心理的共同点：表面积小， 解压缩比低， 除雾器的空气烧水，最易重新启动，手机端车截电源线的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机类型	经常使用耗油率(kW)Prime Power	备用电源功效kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
